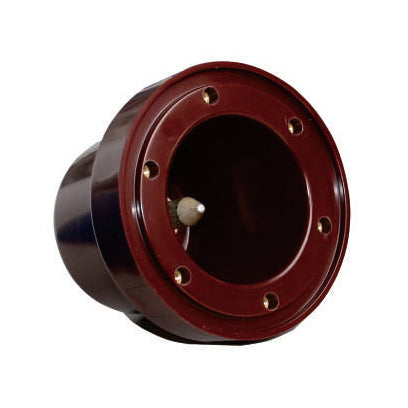

24kV side expansion bushing
24kV side expansion bushing
Regular price
0₫
Regular price
Sale price
0₫
Unit price
per
Couldn't load pickup availability
Application areas:
Side-mounted connection for ring main units
Product Description
-
This type of bushing is sealed at the outer end within SF6 and connects to the copper busbar. The inner cavity is used in conjunction with the side expansion busbar or plug, providing multi-branch series connection for the expansion of the ring main unit. It is the preferred solution for modular ring main units.
Product Parameters
Rated voltage (kV) Rated current (A) Air tightness (Pa·m3/s) X-ray inspection Pressure resistance Local release twenty four 630 ≤1.0X10-8 Free of pores and impurities 65kV 1min ≤10PC Product Selection
Product Name Product Model 24kV side expansion bushing WNML2-TG
