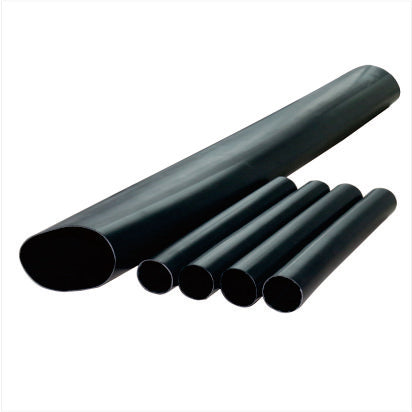

Heat Shrink Joints for LV Cables
Heat Shrink Joints for LV Cables
Couldn't load pickup availability
The joints are designed for 1-, 2-, 3-, 4- and 5-core cables with or without armour. The joints are also applicable to 3+1, 4+1 and 3+2 cables.
The connectors are insulated and sealed with adhesive coated insulation tubes. The outer tube provides mechanical protection and chemical resistance as expected from cable oversheath. All joints are designed to allow crossing of cable cores.
|
Voltage U0/U(Um) |
Cores | Cross Section/mm2 | Kit No. |
| 0.6/1(1.2)kV | 4, 5, 3, 2, 1 |
4-6 10-16 25-50 70-120 150-240 300-400 500 |
0.6/1kVRSJ-4(5,3,2)/(-1) 0.6/1kVRSJ-4(5,3,2)/0 0.6/1kVRSJ-4(5,3,2,1)/1 0.6/1kVRSJ-4(5,3,2,1)/2 0.6/1kVRSJ-4(5,3,2,1)/3 0.6/1kVRSJ-4(5,3,2,1)/4 0.6/1kVRSJ-4(3,1)/5 |
Note:
1. Joints and components for other cable types are available on request.
2. Solderless earth connection system for armoured cables is available on request.
3. Connectors and other accessories need to be ordered separately.
