Model: RSFR-H
Universal heat shrinkable tubing with excellent physical and mechanical properties

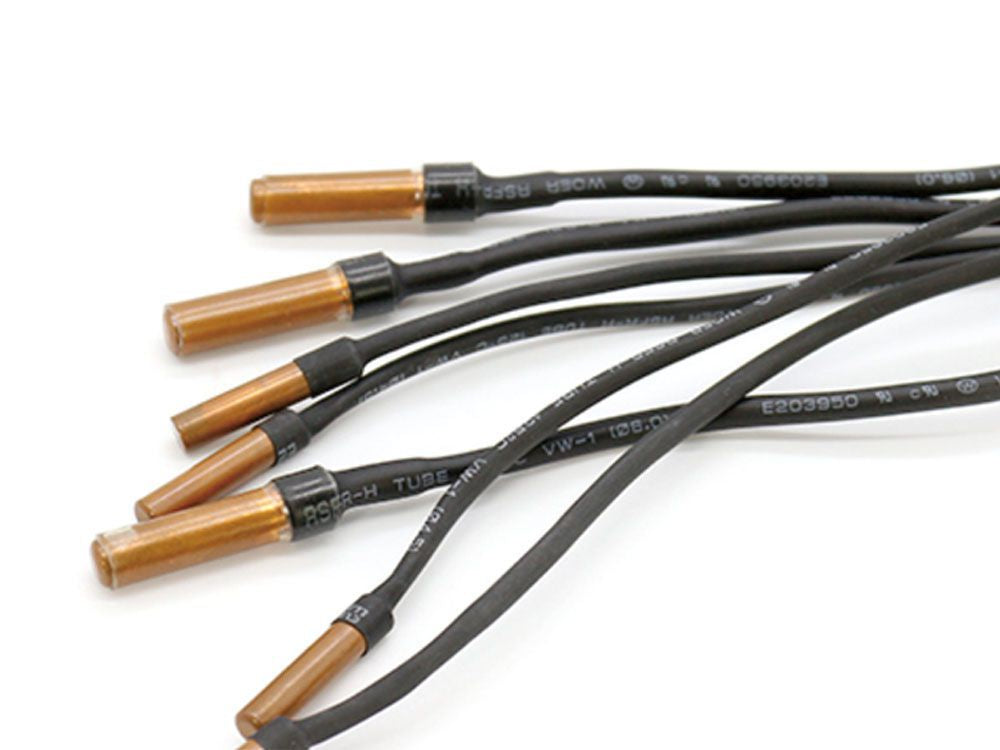

RSFR-H single wall heat shrink tubing is flexible flame-retardant heat shrinkable tubing used for electrical insulation, wire bundling and moisture resistance. It offers excellent physical and mechanical properties.
FEATURES
- Shrink ratio: 2:1
- Flexible
- Flame retardant
- Continuous operating temperature: -55℃~125℃
- Fully shrink temperature: ≥125℃
- RoHS compliant
TYPICAL APPLICATIONS
- Electrical insulation
- Strain relief for connectors and splices
- Protection against mechanical damage and abrasion
- Moisture and corrosion resistance
- Wire bundling
- Wire harnessing
TECHNICAL DATA
| Property | Test Method | Typical Performance |
| Tensile strength (MPa) | ASTM D 2671 | ≥10.4 |
| Ultimate elongation (%) | ASTM D 2671 | ≥200 |
| Tensile strength after heat aging (MPa) | 158℃×168h | ≥7.3 |
| Ultimate elongation after heat aging (%) | 158℃×168h | ≥100 |
| Longitudinal change (%) | ASTM D 2671 | -5%～+5% |
| Flammability | ASTM D 2671 C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Dielectric strength (kV/mm) | ASTM D 149 | ≥15 |
| Volume resistivity (Ω.cm) | ASTM D 876 | ≥1014 |
